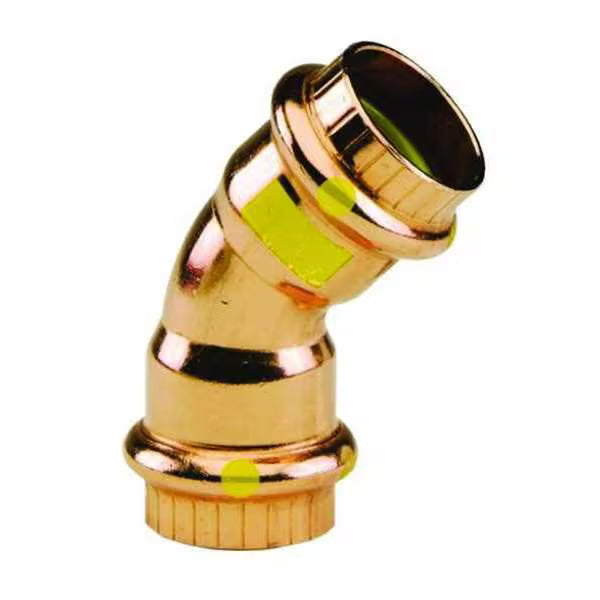

VIEGA ProPress 45° Elbow 1-1/2" x 1-1/2" Copper Press Fitting 77038

The Viega ProPress 45° Elbow (77038) is a high-performance copper press fitting designed to create fast, secure directional changes in piping systems without the need for soldering or flame. Built for professional plumbing applications, it delivers reliable, leak-resistant connections in seconds using compatible press tools.

Key Features

• 45-degree copper elbow for directional flow changes
• 1-1/2" x 1-1/2" press connection (P x P)
• Compatible with the Viega ProPress system
• Smart Connect® technology helps identify unpressed connections during pressure testing
• EPDM sealing element for long-lasting, leak-resistant performance
• Flameless installation – no soldering, flux, or fire permits required
• Suitable for wet or dry pipe conditions
• Press connection installs in seconds for faster job completion

Applications

Ideal for use in:

• Potable water systems
• Hydronic heating systems
• Compressed air lines
• Non-combustible gas applications (as approved)

Specifications

• Material: Copper
• Angle: 45°
• Size: 1-1/2" x 1-1/2"
• Model: 77038
• Connection Type: Press (ProPress)
• Seal: EPDM
• Operating Pressure: Up to 300 psi (system dependent)
• Temperature Range: 0°F to 250°F
