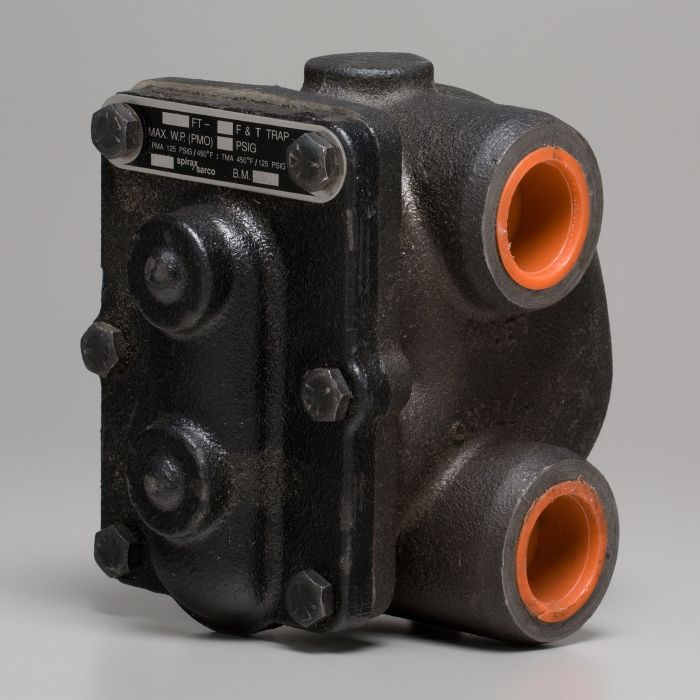

The Spirax-Sarco FT-75 3/4" Float & Thermostatic Steam Trap (Part #50930) is a durable cast iron steam trap designed for efficient condensate removal while preventing the loss of live steam. Featuring a float-operated valve for continuous condensate discharge and a balanced pressure thermostatic air vent for automatic removal of air and non-condensable gases, the FT-75 delivers reliable performance across a wide range of commercial and industrial steam applications. It is ideal for heat exchangers, unit heaters, air heating coils, and steam main drip stations where consistent condensate management is essential.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-75
• Part Number: 50930
• Connection Size: 3/4"
• Connection Type: FNPT
• Steam Trap Type: Float & Thermostatic (F&T)
• Maximum Operating Pressure: 75 PSI
• Maximum Allowable Pressure: 125 PSI
• Maximum Temperature: 450°F (232°C)
• Body Material: Cast Iron
• Internal Components: Stainless Steel
• Flow Pattern: Parallel
• Condition: New

Applications

The Spirax-Sarco FT-75 is recommended for:

• Heat exchangers
• Unit heaters
• Air heating coils
• Steam main drip stations
• Process equipment with modulating temperature control valves
• Commercial and industrial steam systems
