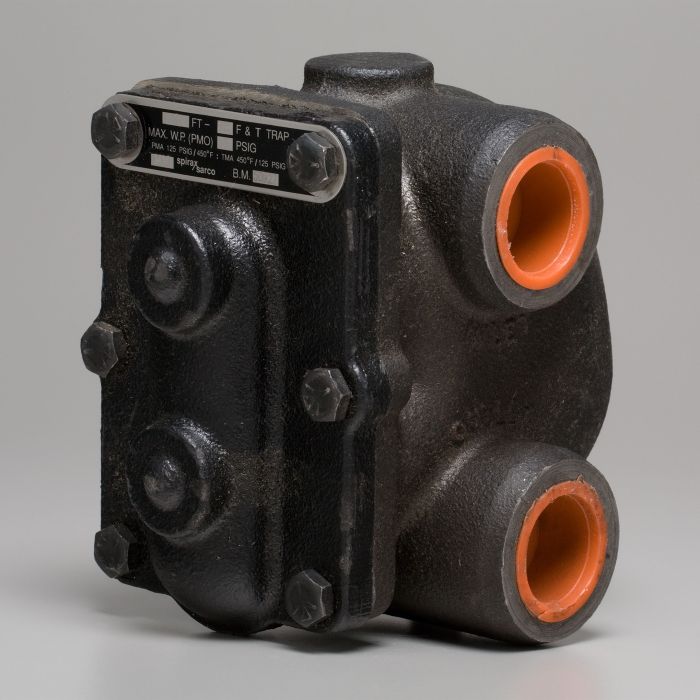

Spirax-Sarco FT-75 2" Float & Thermostatic Steam Trap, 75 psi, 57065

The Spirax-Sarco FT-75 2" Float & Thermostatic Steam Trap (Part #57065) is designed for efficient condensate removal and automatic air venting in commercial and industrial steam systems. Featuring a rugged float-operated mechanism, the FT-75 continuously discharges condensate at steam temperature while preventing the loss of valuable live steam. The integrated balanced pressure thermostatic air vent quickly removes air and non-condensable gases to improve heat transfer and overall system performance.

Built with a durable cast iron body and corrosion-resistant stainless steel internal components, the FT-75 provides reliable operation and extended service life in demanding steam applications. Its serviceable design allows maintenance without removing the trap from the pipeline, helping reduce downtime and simplify system maintenance.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-75
• Part Number: 57065
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 2"
• Connection Type: Female NPT
• Maximum Operating Pressure: 75 PSI
• Maximum Allowable Pressure: 125 PSI
• Maximum Temperature: 450°F (232°C)
• Body Material: Cast Iron
• Internal Components: Stainless Steel
• Flow Pattern: Parallel
• Condition: New

Applications

The Spirax-Sarco FT-75 is ideal for:

• Heat exchangers
• Unit heaters
• Air heating coils
• Steam main drip stations
• Process equipment
• Commercial and industrial steam distribution systems
