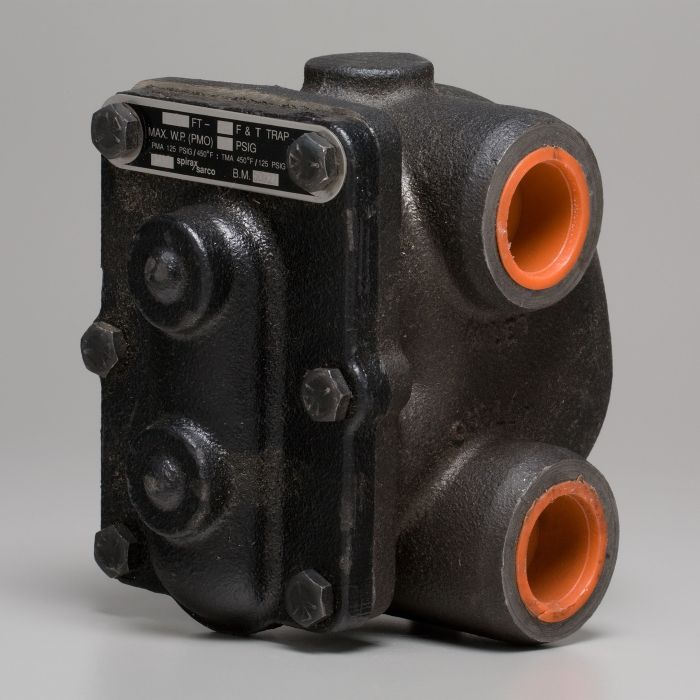

Spirax-Sarco FT-75 1" Float & Thermostatic Steam Trap, 75 psi, 50931

The Spirax-Sarco FT-75 1" Float & Thermostatic Steam Trap (Part #50931) is a high-performance mechanical steam trap engineered for continuous condensate removal and efficient air venting in commercial and industrial steam systems. Its float-operated valve automatically discharges condensate at steam temperature, while the balanced pressure thermostatic air vent removes air and other non-condensable gases to improve system efficiency and heat transfer. Built with a rugged cast iron body and corrosion-resistant stainless steel internals, the FT-75 is designed for dependable, long-lasting operation in demanding applications.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-75
• Part Number: 50931
• Connection Size: 1"
• Connection Type: FNPT
• Steam Trap Type: Float & Thermostatic (F&T)
• Maximum Operating Pressure: 75 PSI
• Maximum Allowable Pressure: 125 PSI
• Maximum Operating Temperature: 450°F (232°C)
• Body Material: Cast Iron
• Internal Material: Stainless Steel
• Flow Pattern: Parallel
• Connection: New
