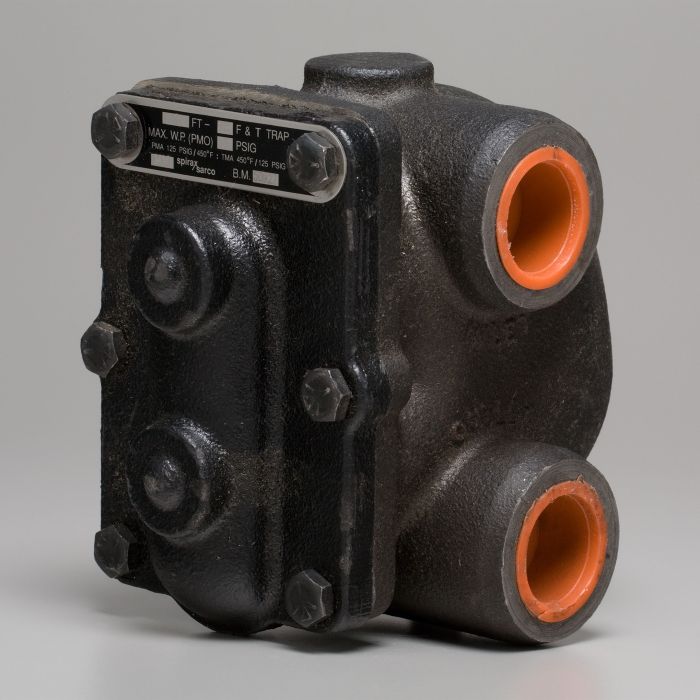

Spirax-Sarco FT-75 1-1/4" Float & Thermostatic Steam Trap, 75 psi, 58452

The Spirax-Sarco FT-75 1-1/4" Float & Thermostatic Steam Trap (Part #58452) is designed to deliver continuous condensate removal and efficient air venting in commercial and industrial steam systems. Its float-operated valve automatically discharges condensate at steam temperature, while the balanced pressure thermostatic air vent removes air and other non-condensable gases to maximize heat transfer and improve system efficiency.

Manufactured with a rugged cast iron body and corrosion-resistant stainless steel internal components, the FT-75 provides dependable performance, long service life, and reduced maintenance requirements. Its serviceable design allows maintenance without removing the trap from the steam line, minimizing downtime and simplifying routine servicing.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-75
• Part Number: 58452
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 1-1/4"
• Connection Type: Female NPT
• Maximum Operating Pressure: 75 PSI
• Maximum Allowable Pressure: 125 PSI
• Maximum Temperature: 450°F (232°C)
• Body Material: Cast Iron
• Internal Material: Stainless Steel
• Flow Pattern: Parallel
• Condition: New

Applications

The Spirax-Sarco FT-75 is ideal for:

• Heat exchangers
• Unit heaters
• Air heating coils
• Steam main drip stations
• Process equipment
• Commercial and industrial steam distribution systems
