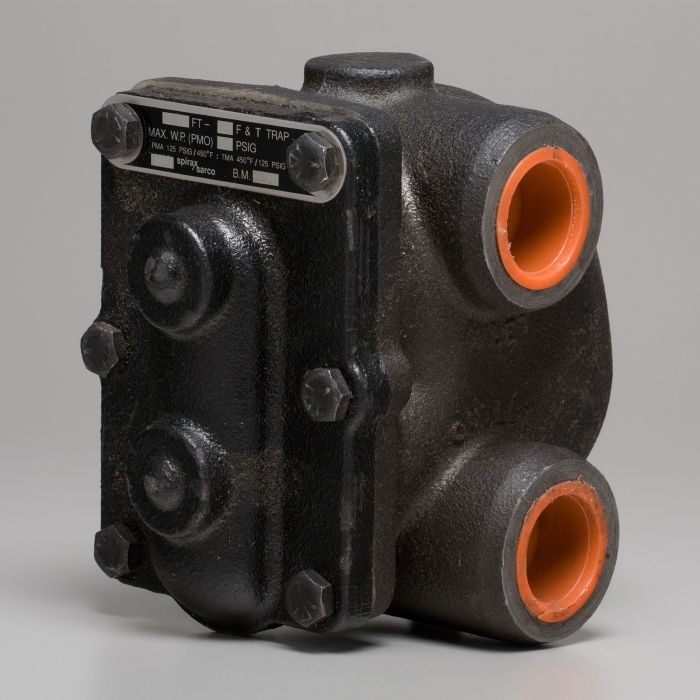

Spirax-Sarco FT-75 1-1/2" Float & Thermostatic Steam Trap, 75 psi, 57061

The Spirax-Sarco FT-75 1-1/2" Float & Thermostatic Steam Trap (Part #57061) is a high-performance mechanical steam trap designed for continuous condensate removal and automatic air venting in commercial and industrial steam systems. Its float-operated valve discharges condensate at steam temperature, while the integral balanced pressure thermostatic air vent efficiently removes air and non-condensable gases to improve heat transfer and maximize system efficiency.

Built with a durable cast iron body and corrosion-resistant stainless steel internal components, the FT-75 delivers long-lasting performance in demanding applications. Its field-serviceable design allows maintenance without removing the trap from the pipeline, reducing downtime and simplifying routine service.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-75
• Part Number: 57061
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 1-1/2"
• Connection Type: Female NPT
• Maximum Operating Pressure: 75 PSI
• Maximum Allowable Pressure: 125 PSI
• Maximum Temperature: 450°F (232°C)
• Body Material: Cast Iron
• Internal Material: Stainless Steel
• Flow Pattern: Parallel
• Condition: New
