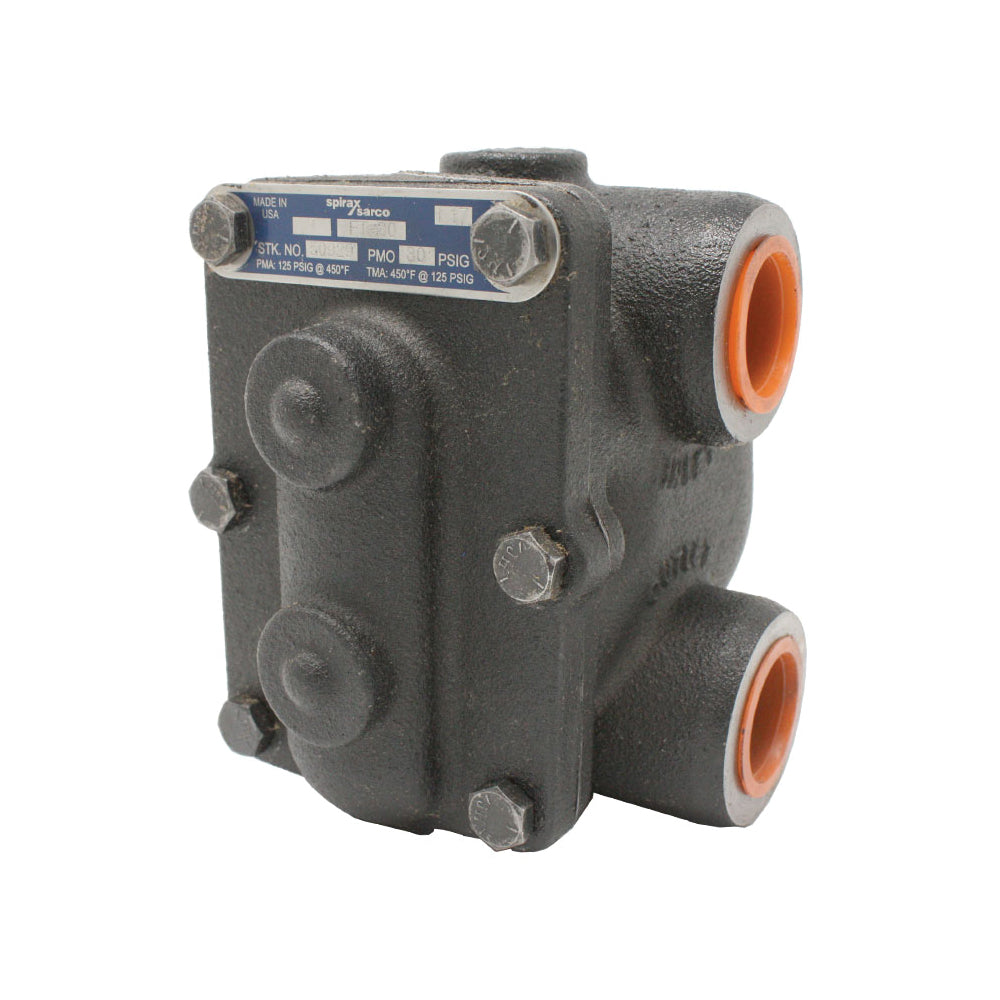

The Spirax-Sarco FT-30 Float & Thermostatic (F&T) Steam Trap is engineered for efficient, continuous condensate removal while automatically venting air and non-condensable gases from steam systems. Featuring a rugged cast iron body with corrosion-resistant stainless steel internals, this 3/4" NPT steam trap is ideal for applications with modulating steam pressures and varying condensate loads.

Designed with a same-side (parallel) connection configuration, the FT-30 delivers dependable performance in heat exchangers, unit heaters, air heating coils, process equipment, and steam main drip stations. Its float-operated valve continuously discharges condensate at steam temperature, while the built-in thermostatic air vent ensures rapid startup and improved system efficiency.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-30
• Part Number: 50928
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 3/4" FNPT
• Maximum Operating Pressure: 30 PSI
• Maximum Operating Temperature: 450°F
• Body Material: Cast Iron
• Internal Components: Stainless Steel
• Configuration: Parallel (Same-Side Connections)
• Condition: New

Typical Applications

• Heat exchangers
• Unit heaters
• Air heating coils
• Process equipment
• Steam main drip stations
