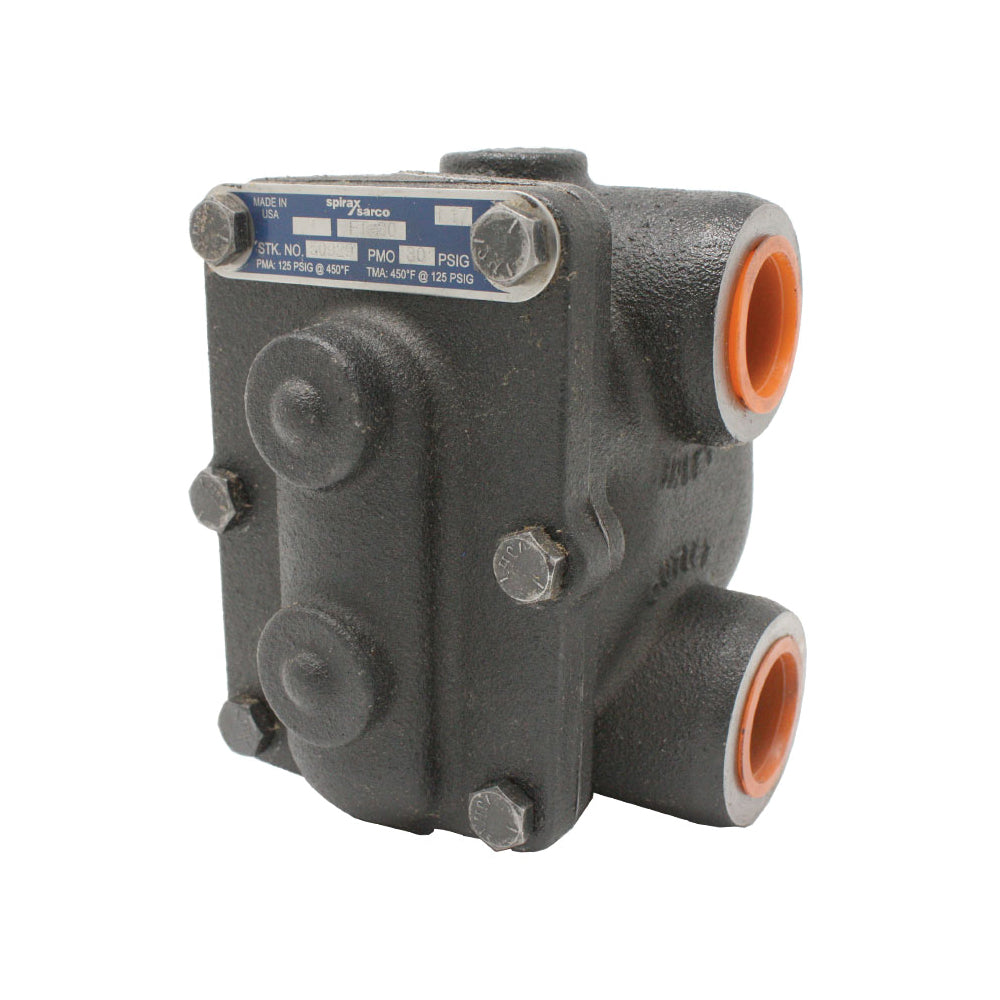

Spirax-Sarco FT-30 2" Float & Thermostatic Steam Trap, 30 psi, 57064

The Spirax-Sarco FT-30 Float & Thermostatic (F&T) Steam Trap is engineered for continuous condensate removal and automatic air venting in low-pressure steam systems. Featuring 2" FNPT connections and a 30 PSI operating pressure rating, this steam trap is ideal for high-capacity heat exchangers, process equipment, unit heaters, and other industrial steam applications with varying condensate loads.

Manufactured with a durable cast iron body and stainless steel internal components, the FT-30 is built to withstand demanding operating conditions while providing reliable, long-lasting performance. Its float-operated valve continuously discharges condensate at steam temperature, while the integral thermostatic air vent rapidly removes air and non-condensable gases during startup and operation, improving heat transfer and overall steam system efficiency.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-30
• Part Number: 57064
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 2" FNPT
• Maximum Operating Pressure: 30 PSI
• Maximum Operating Temperature: 450°F
• Body Material: Cast Iron
• Internal Components: Stainless Steel
• Connection Configuration: Parallel (Same-Side)
• Condition: New

Typical Applications

• Heat exchangers
• Process equipment
• Unit heaters
• Air heating coils
• Steam main drip stations
• Steam systems with modulating control valves

The Spirax-Sarco FT-30 2" Float & Thermostatic Steam Trap (57064) delivers dependable condensate removal, efficient air venting, and reliable operation to help maximize steam system efficiency, reduce energy losses, and extend equipment service life.
