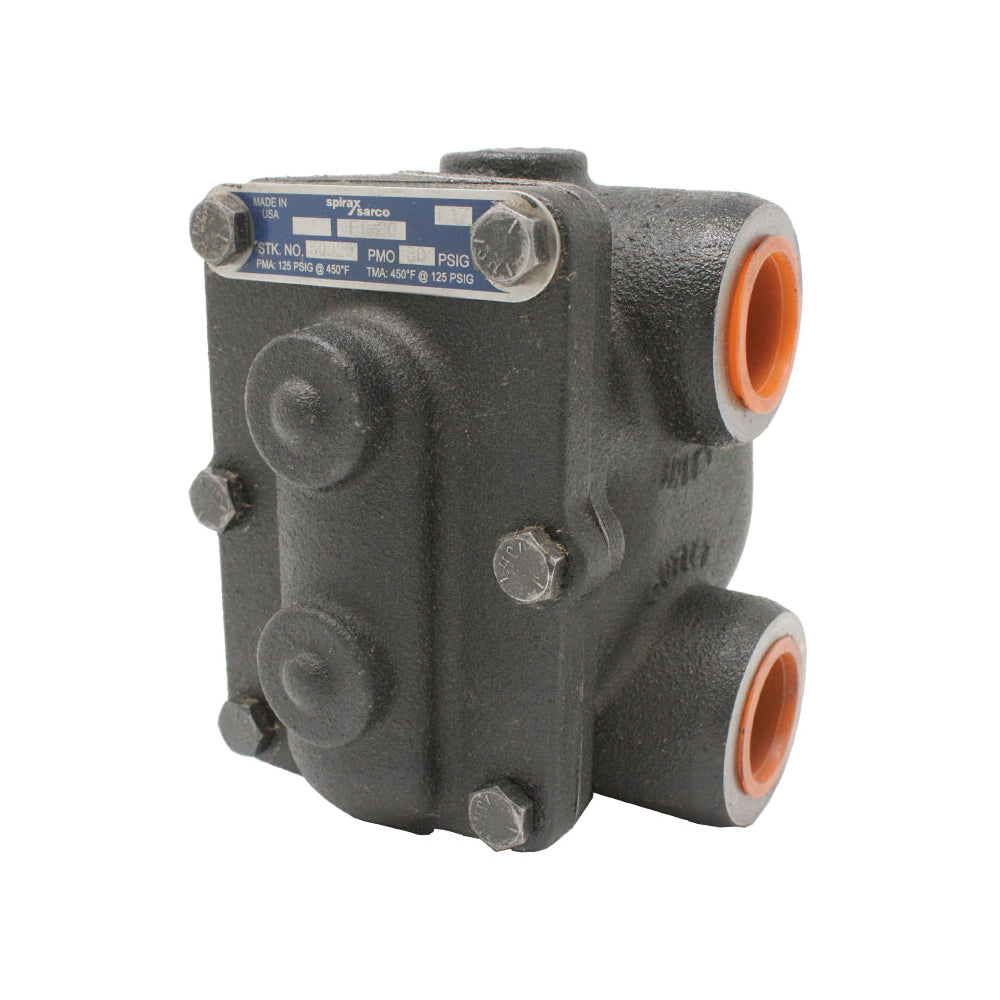

The Spirax-Sarco FT-30 Float & Thermostatic (F&T) Steam Trap is designed to provide continuous condensate removal and automatic air venting for maximum steam system efficiency. Rated for 30 PSI and equipped with 1" FNPT connections, this steam trap is ideal for process equipment, heat exchangers, unit heaters, and other applications where condensate loads and steam pressure vary.

Built with a durable cast iron body and stainless steel internal components, the FT-30 delivers long-lasting performance in demanding industrial environments. Its float mechanism continuously discharges condensate at steam temperature, while the integral thermostatic air vent rapidly removes air and non-condensable gases during startup and operation, helping improve heat transfer and reduce energy waste.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-30
• Part Number: 50929
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 1" FNPT
• Maximum Operating Pressure: 30 PSI
• Maximum Operating Temperature: 450°F
• Body Material: Cast Iron
• Internal Components: Stainless Steel
• Connection Configuration: Parallel (Same-Side)
• Condition: New

Typical Applications

• Heat exchangers
• Unit heaters
• Air heating coils
• Process equipment
• Steam main drip stations
• Steam systems with modulating control valves

The Spirax-Sarco FT-30 1" Float & Thermostatic Steam Trap (50929) provides dependable condensate drainage, efficient air venting, and reliable operation, helping improve steam system performance, reduce energy consumption, and extend equipment life.
