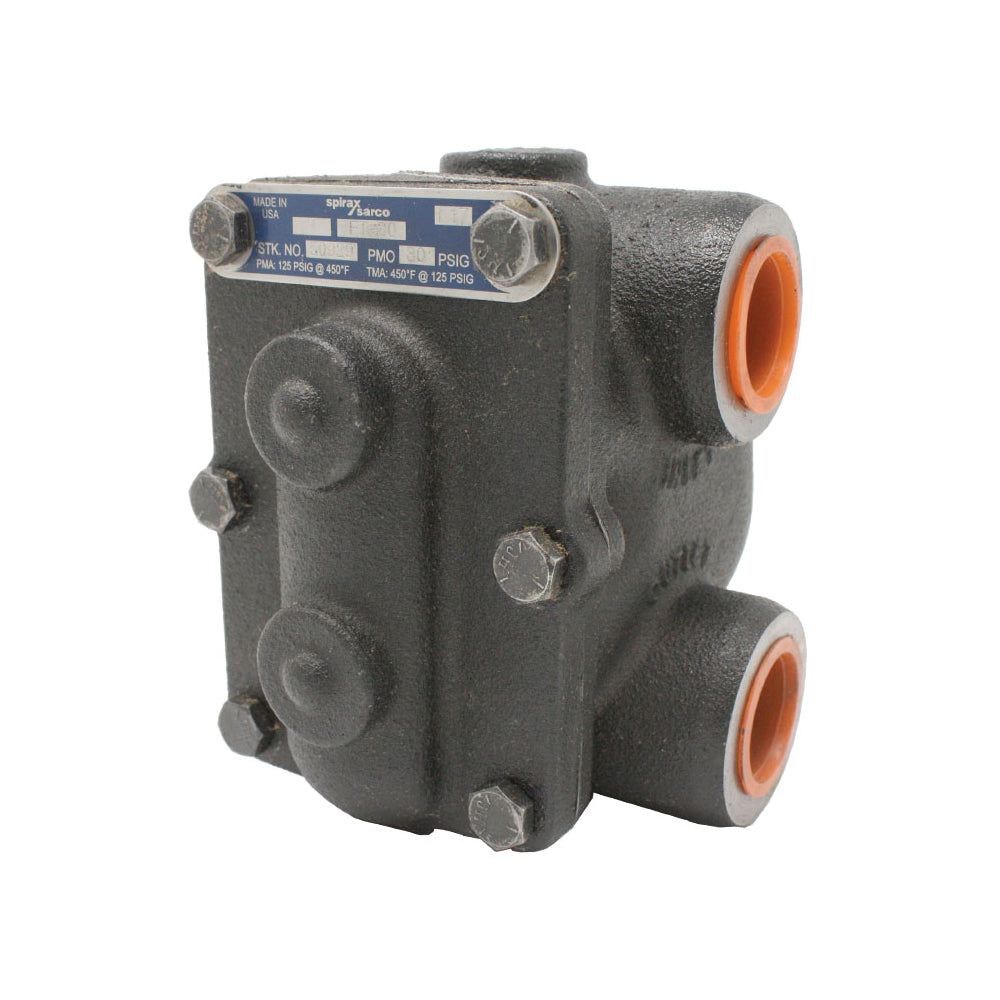

The Spirax-Sarco FT-30 Float & Thermostatic (F&T) Steam Trap is designed for continuous condensate removal and automatic air venting in low-pressure steam systems. Rated for 30 PSI and featuring 1-1/4" FNPT connections, this steam trap provides dependable performance in applications with varying condensate loads and modulating steam pressures.

Constructed with a durable cast iron body and stainless steel internal components, the FT-30 offers long service life and corrosion resistance in demanding industrial environments. The float-operated mechanism continuously discharges condensate at steam temperature, while the built-in thermostatic air vent quickly removes air and non-condensable gases during startup, helping maximize heat transfer and overall system efficiency.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-30
• Part Number: 58114
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 1-1/4" FNPT
• Maximum Operating Pressure: 30 PSI
• Maximum Operating Temperature: 450°F
• Body Material: Cast Iron
• Internal Components: Stainless Steel
• Connection Configuration: Parallel (Same-Side)
• Condition: New

Typical Applications

• Heat exchangers
• Unit heaters
• Air heating coils
• Process equipment
• Steam main drip stations
• Steam systems with modulating control valves

The Spirax-Sarco FT-30 1-1/4" Float & Thermostatic Steam Trap (58114) delivers efficient condensate removal, fast air venting, and reliable operation to improve steam system performance, reduce energy losses, and extend equipment life.
