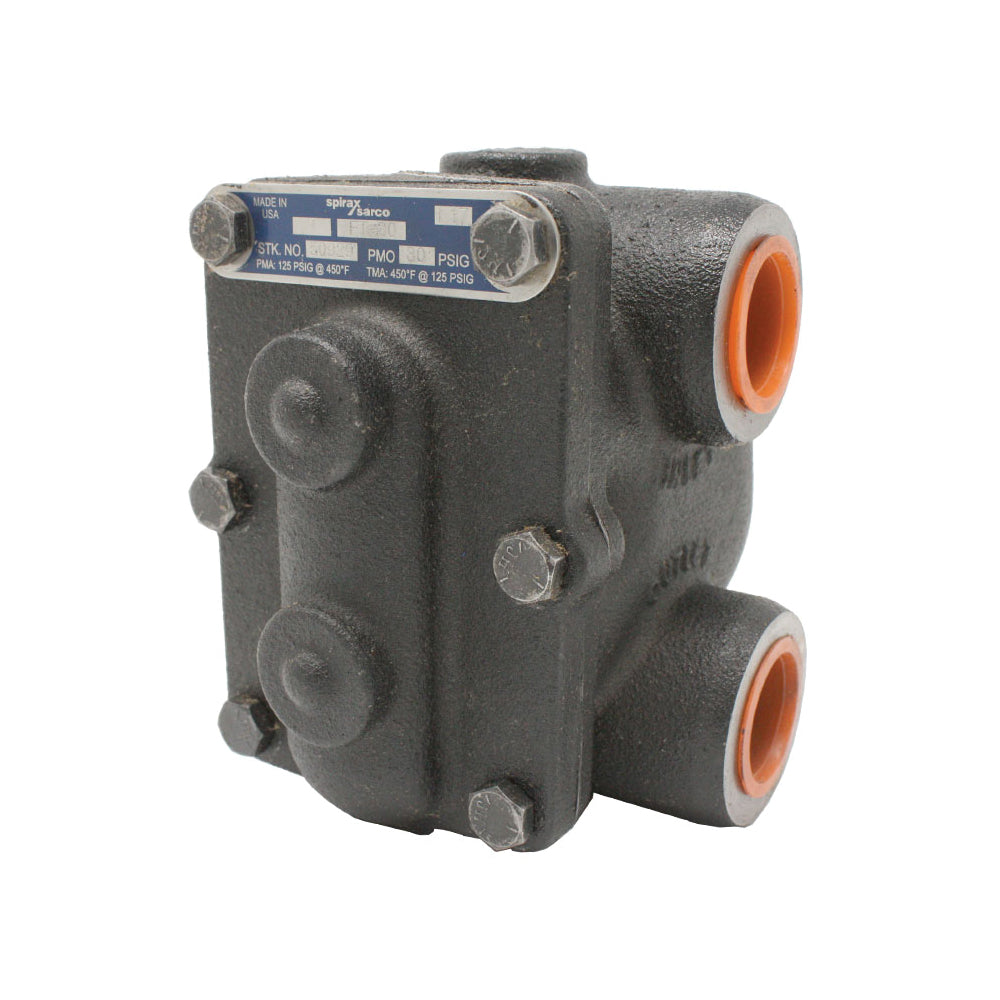

Spirax-Sarco FT-30 1-1/2" Float & Thermostatic Steam Trap, 30 psi, 57060

The Spirax-Sarco FT-30 Float & Thermostatic (F&T) Steam Trap is engineered for continuous condensate removal and automatic air venting in low-pressure steam systems. Featuring 1-1/2" FNPT connections and a 30 PSI operating pressure rating, this steam trap is ideal for heat exchangers, process equipment, unit heaters, and other industrial steam applications with variable condensate loads.

Built with a rugged cast iron body and stainless steel internal components, the FT-30 delivers dependable performance and long service life in demanding environments. The float-operated mechanism continuously removes condensate at steam temperature, while the integral thermostatic air vent quickly expels air and non-condensable gases during startup and operation, helping maximize heat transfer and improve system efficiency.

Specifications

• Manufacturer: Spirax-Sarco
• Model: FT-30
• Part Number: 57060
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 1-1/2" FNPT
• Maximum Operating Pressure: 30 PSI
• Maximum Operating Temperature: 450°F
• Body Material: Cast Iron
• Internal Components: Stainless Steel
• Connection Configuration: Parallel (Same-Side)
• Condition: New

Typical Applications

• Heat exchangers
• Unit heaters
• Air heating coils
• Process equipment
• Steam main drip stations
• Steam systems with modulating control valves

The Spirax-Sarco FT-30 1-1/2" Float & Thermostatic Steam Trap (57060) provides reliable condensate drainage, efficient air venting, and long-lasting performance to help optimize steam system efficiency and reduce maintenance costs.
