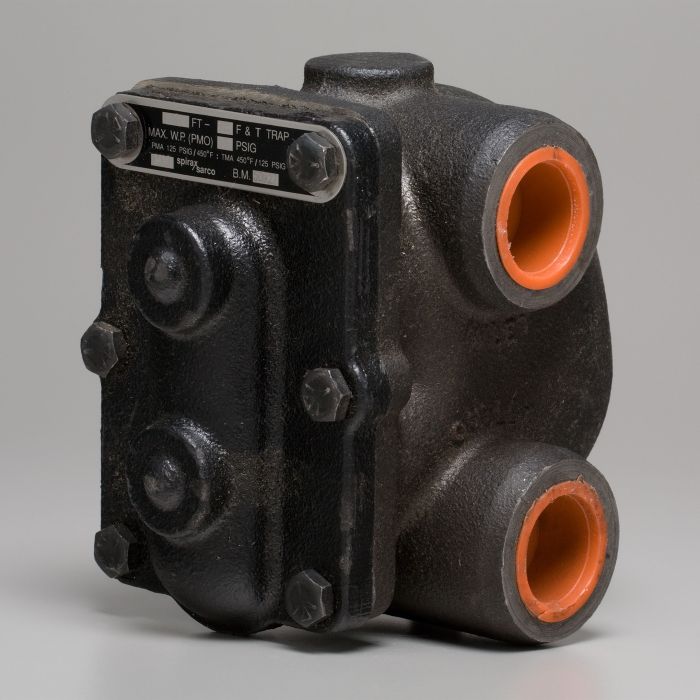

The Spirax-Sarco FT-15 Float & Thermostatic Steam Trap (Part #57063) is engineered for continuous condensate removal and efficient venting of air and non-condensable gases from low-pressure steam systems. Its float-operated valve discharges condensate continuously at steam temperature, while the integral balanced pressure thermostatic air vent provides rapid startup and dependable performance.

Constructed with a rugged cast iron body and corrosion-resistant stainless steel internals, the FT-15 is ideal for industrial process equipment operating under modulating loads. The 2" NPT threaded connections make it suitable for larger condensate capacities in heat exchangers, unit heaters, air handling coils, and steam distribution systems.

Specifications

• Brand: Spirax-Sarco
• Model: FT-15
• Part Number: 57063
• Steam Trap Type: Float & Thermostatic (F&T)
• Connection Size: 2"
• Connection Type: FNPT / NPT
• Body Material: Cast Iron
• Maximum Operating Pressure: 15 PSIG
• Maximum Temperature: 450°F (232°C)
• Flow Pattern: Parallel (Same Side)
• Internal Components: Stainless Steel
• Condition: New

Typical Applications

• Heat exchangers
• Steam unit heaters
• Air heating coils
• Steam main drip stations
• Process equipment with modulating temperature control valves
• Industrial steam and condensate systems
