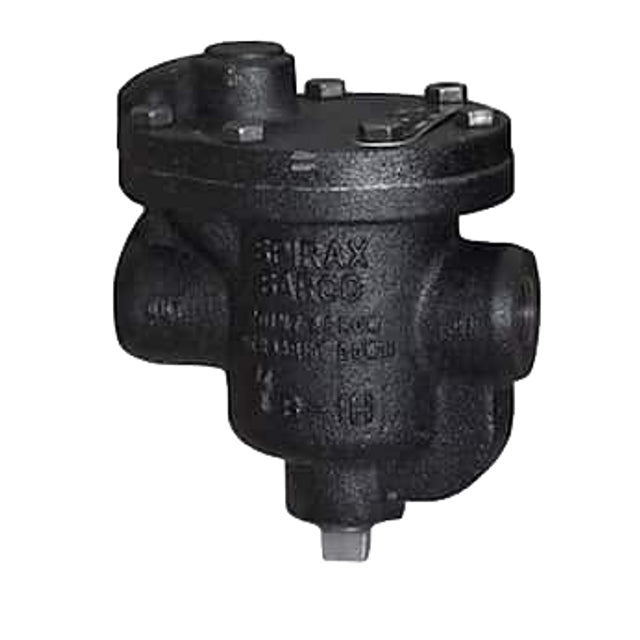

Spirax Sarco 64151 B1H-180 1/2" Inverted Bucket Steam Trap

The Spirax Sarco 64151 B1H-180 1/2" Inverted Bucket Steam Trap is designed for reliable condensate removal in high-pressure steam heating and process applications. Featuring a durable cast iron body and proven inverted bucket operating design, this steam trap efficiently removes condensate while minimizing the loss of live steam, helping improve system efficiency and reliability.

Engineered for steam systems operating up to 180 PSIG, the B1H-180 provides dependable mechanical operation under demanding conditions. Its rugged construction and compact design make it suitable for steam mains, heating equipment, and industrial condensate drainage applications where consistent performance is required.

Features

• 1/2" NPT threaded connections
• Inverted bucket steam trap design
• Durable cast iron body construction
• Rated for steam pressures up to 180 PSIG
• Efficient condensate removal with minimal steam loss
• Reliable mechanical operation for demanding applications
• Compact design for easy installation
• Suitable for steam heating and process systems

Specifications

• Brand: Spirax Sarco
• Model: B1H-180
• Part Number: 64151
• Product Type: Steam Trap
• Trap Type: Inverted Bucket Steam Trap
• Condition: New
• Connection Size: 1/2"
• Connection Type: NPT Threaded
• Body Material: Cast Iron
• Maximum Operating Pressure: 180 PSIG
• Application: High-pressure steam heating, steam mains, and condensate removal systems
